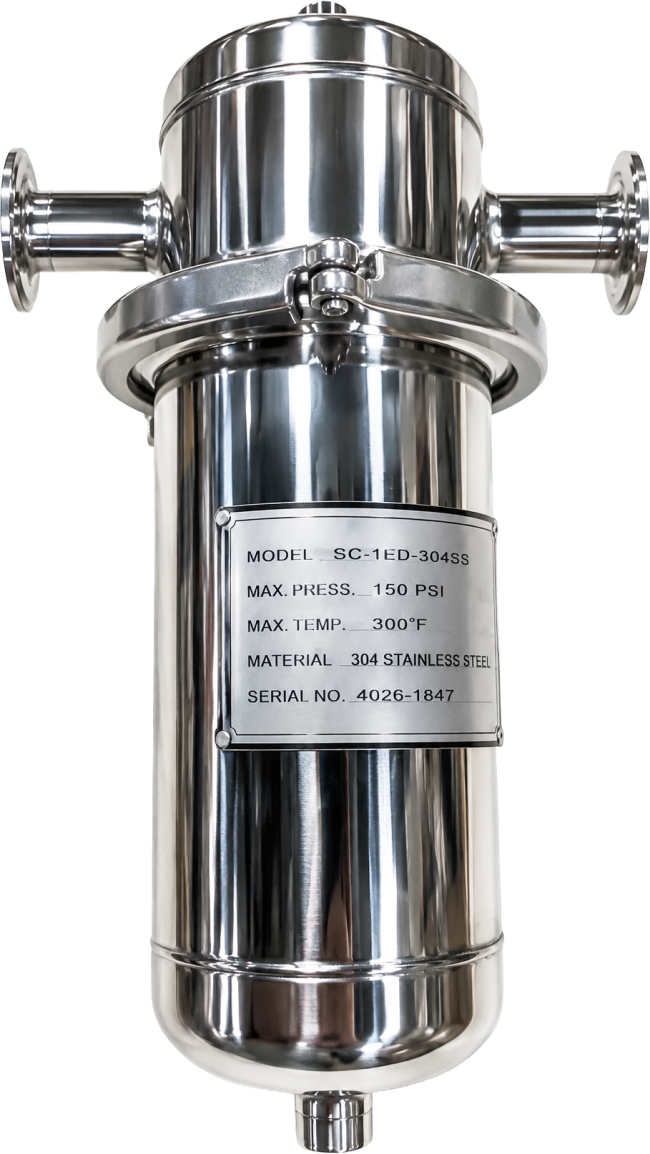

SRVR
A bespoke, sanitary-style cartridge vessel engineered for vent, entrainment, and low-pressure liquid filtration applications. Each unit is quoted and built to the customer’s specification. Single-round housings from 2” through 30” cartridge length are the most common configuration, with 304 stainless steel construction and Tri-Clamp connections.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Construction Materials | 304 SS standard; 316L SS on request |
Advanced Features
| Specification | Detail |
|---|---|
| Sterilization | In-line steam, autoclave, or hot water |
| Finish | Bead blast interior and exterior (ID/OD) |
| End-Cap Options | C6, C7, 222 and 226 style sealing seats |
| Inlet/Outlet — SRVT | 1.5” TC, 2” TC or 3” TC (Tri-Clamp sanitary connections) |
Physical Specifications
| Specification | Detail |
|---|---|
| Maximum Operating Pressure | 150 PSIG at 200°F (typical build; verified per unit) |
| Cartridge Count | Single round (standard); multi-cartridge on request |
| Element Length — SRCT | 2” through 30” (custom lengths available) |
Product Overview

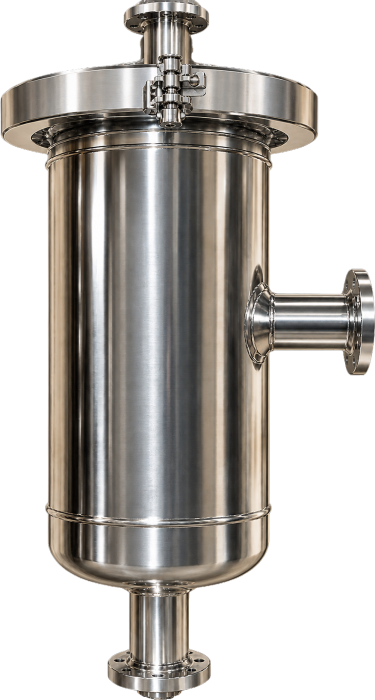

The Strainrite Vent Rite (SRVR) is a bespoke, sanitary-style cartridge vessel engineered for vent, entrainment, and low-pressure liquid filtration applications. Each unit is quoted and built to the customer’s specification. Single-round housings from 2” through 30” cartridge length are the most common configuration, with 304 stainless steel construction and Tri-Clamp connections.
The SRVR is offered in a standard bead-blast (BB) exterior/interior finish as well as an optional sanitary polished (SAN) finish. Multi-cartridge builds are available on request
Features & Benefits
Bespoke Design:
Every SRVR is built to customer specification; no two are quite alike.
Single-Round Configuration / Multi-Cartridge:
Single-Round comes standard; multi-cartridge builds available on request.
Lengths:
Cartridge lengths from 2” through 30”. Custom lengths quoted to specification.
Stainless Steel:
304 stainless steel construction (316L SS available); polished and passivated interior and exterior.
Inlet/Outlet:
Sanitary Tri-Clamp inlet, outlet and drain connections.
O-Ring:
Silicone standard; EPDM, Buna-N, Fluorocarbon on request
Finish:
Bead-blast finish (BB) is the most common surface option; sanitary polished (SAN) available.
End-Cap Configuration:
Options include C6, C7, 222 and 226 style sealing cartridges
Markets & Applications
Food & Beverage
